Technical Packages

Compilation of technical packages done for various projects. For sake of conciseness, not all pages are included.

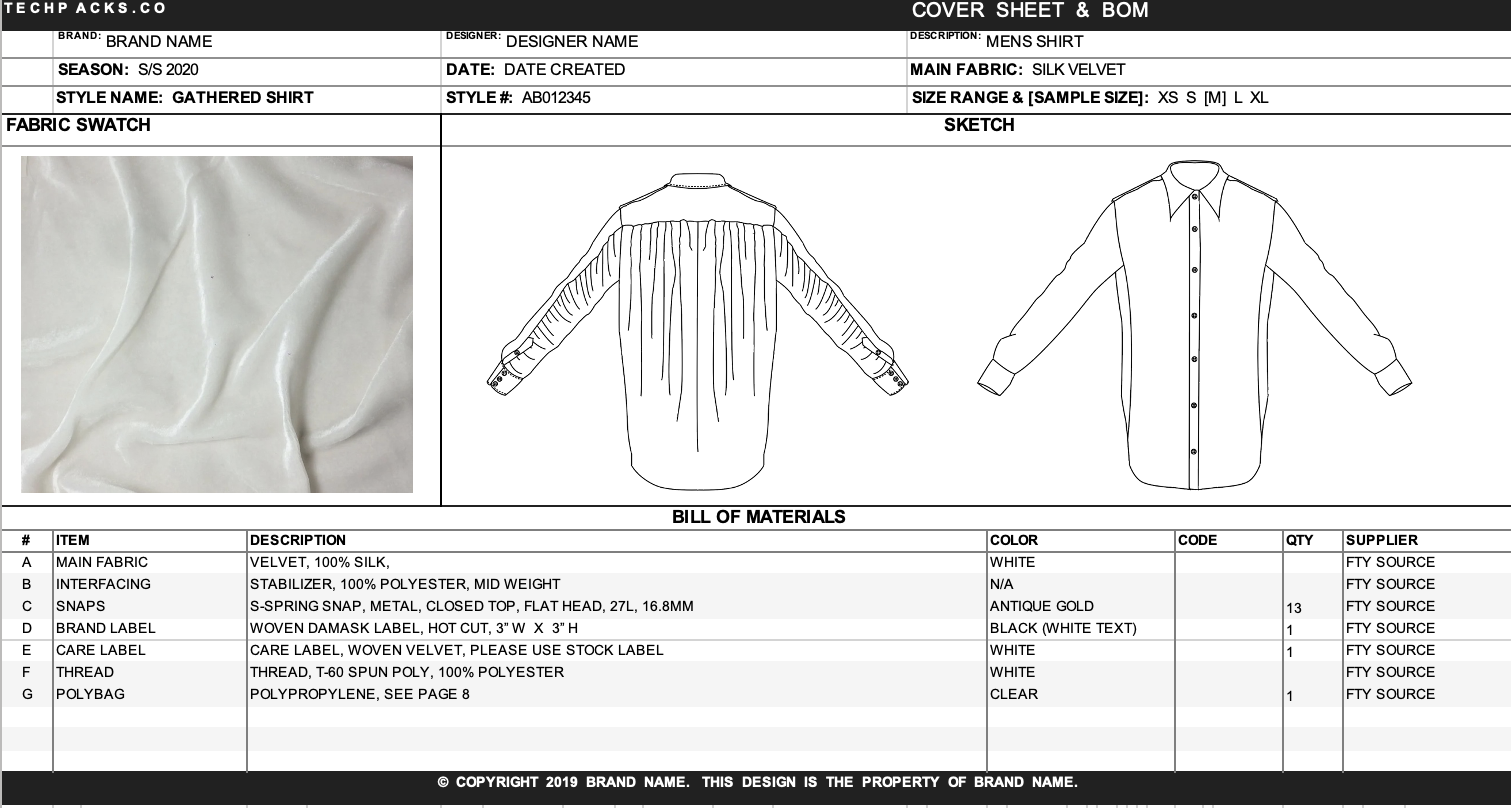

Screenshot 2025-08-10 at 6.30.41 PM.png

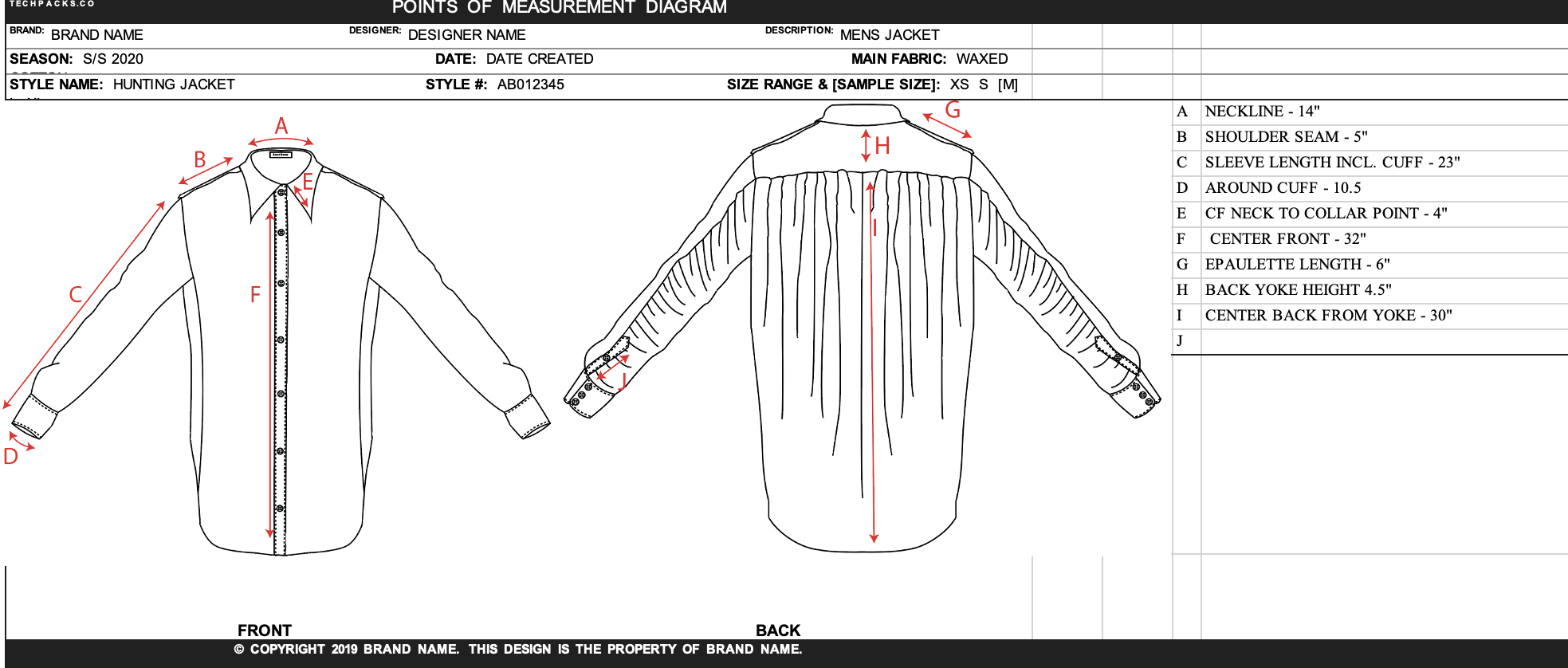

Screenshot 2025-08-10 at 6.46.07 PM.png

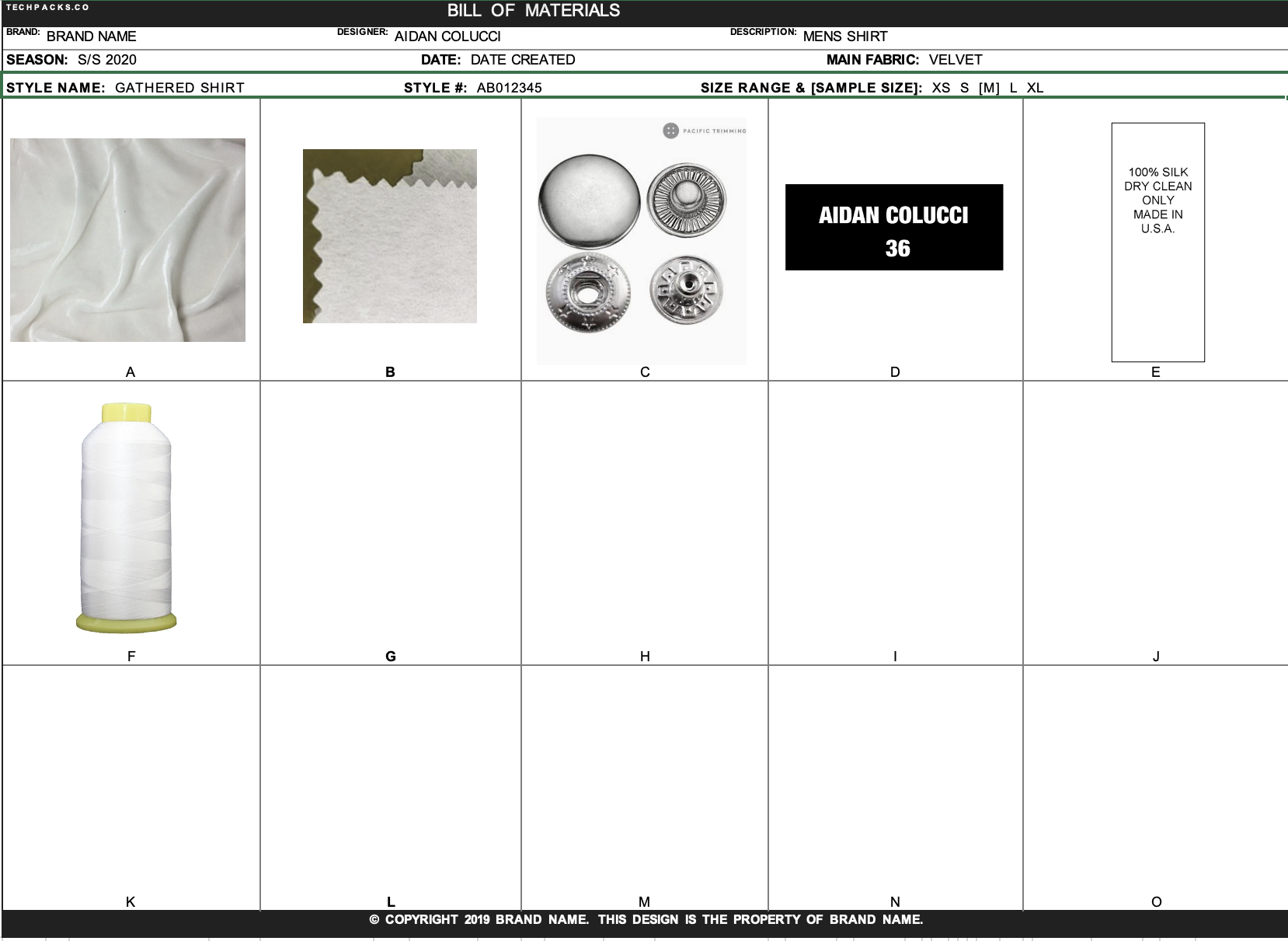

Screenshot 2025-08-10 at 6.47.53 PM.png

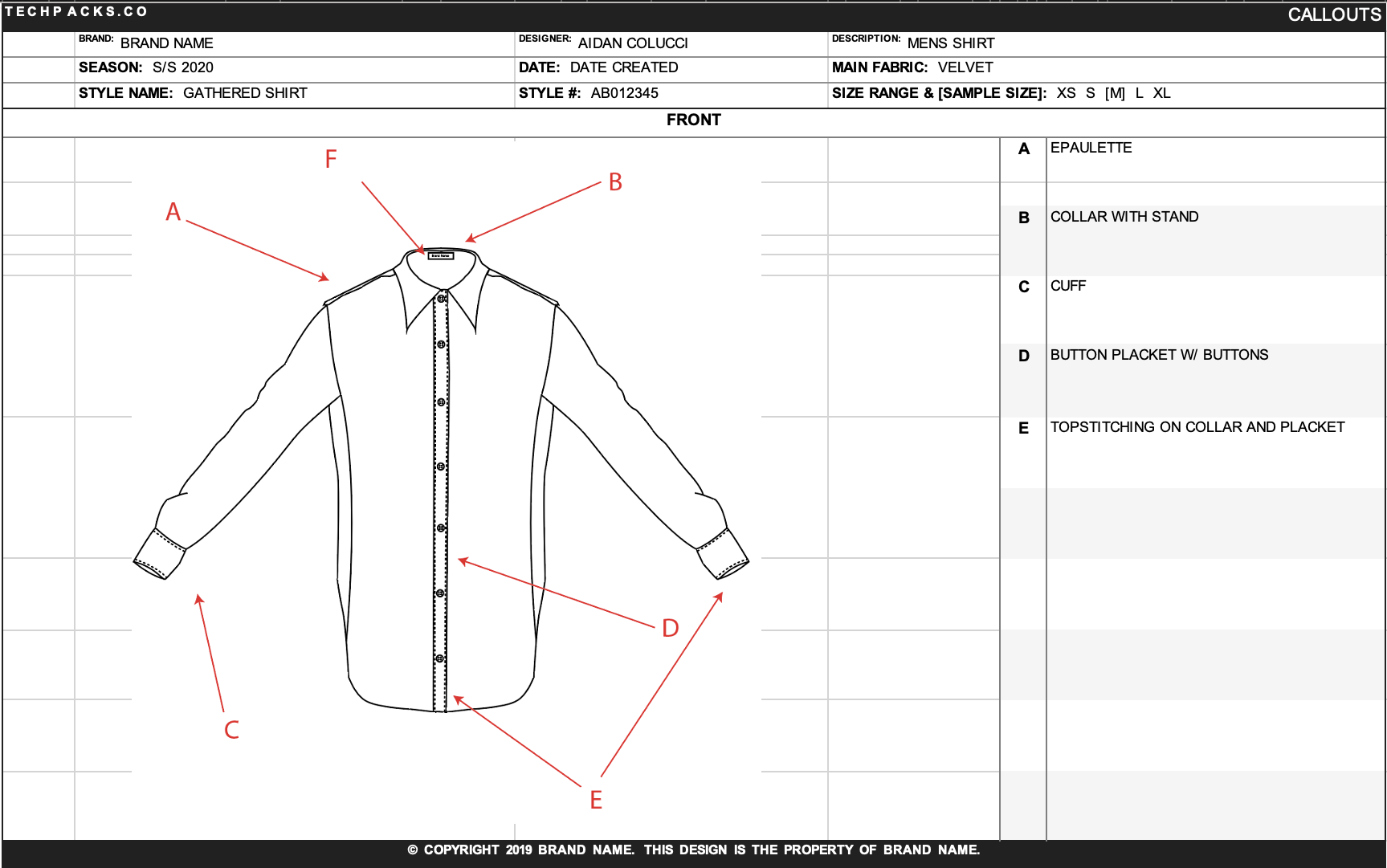

Screenshot 2025-08-10 at 6.49.36 PM.png

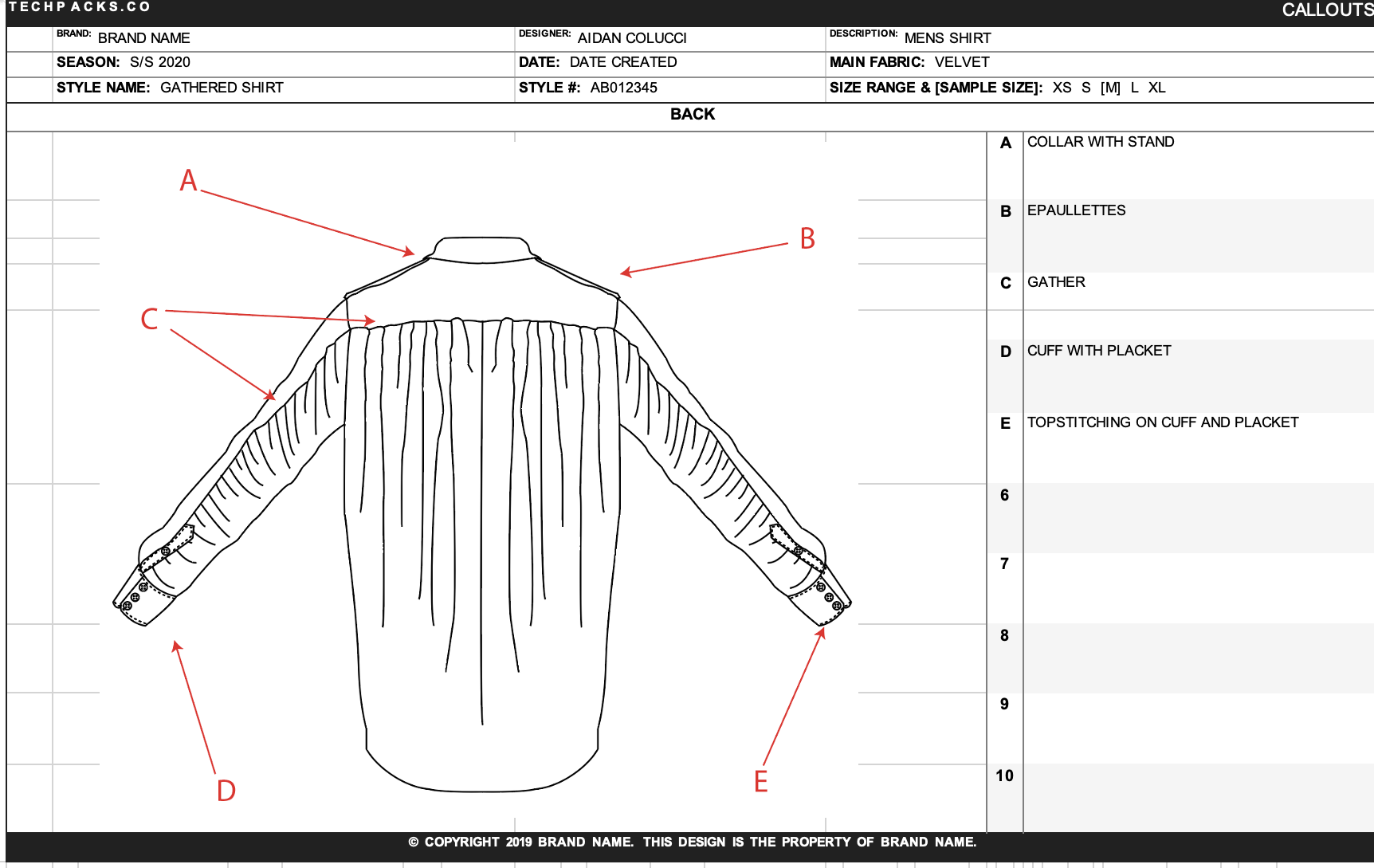

Screenshot 2025-08-10 at 6.57.52 PM.png

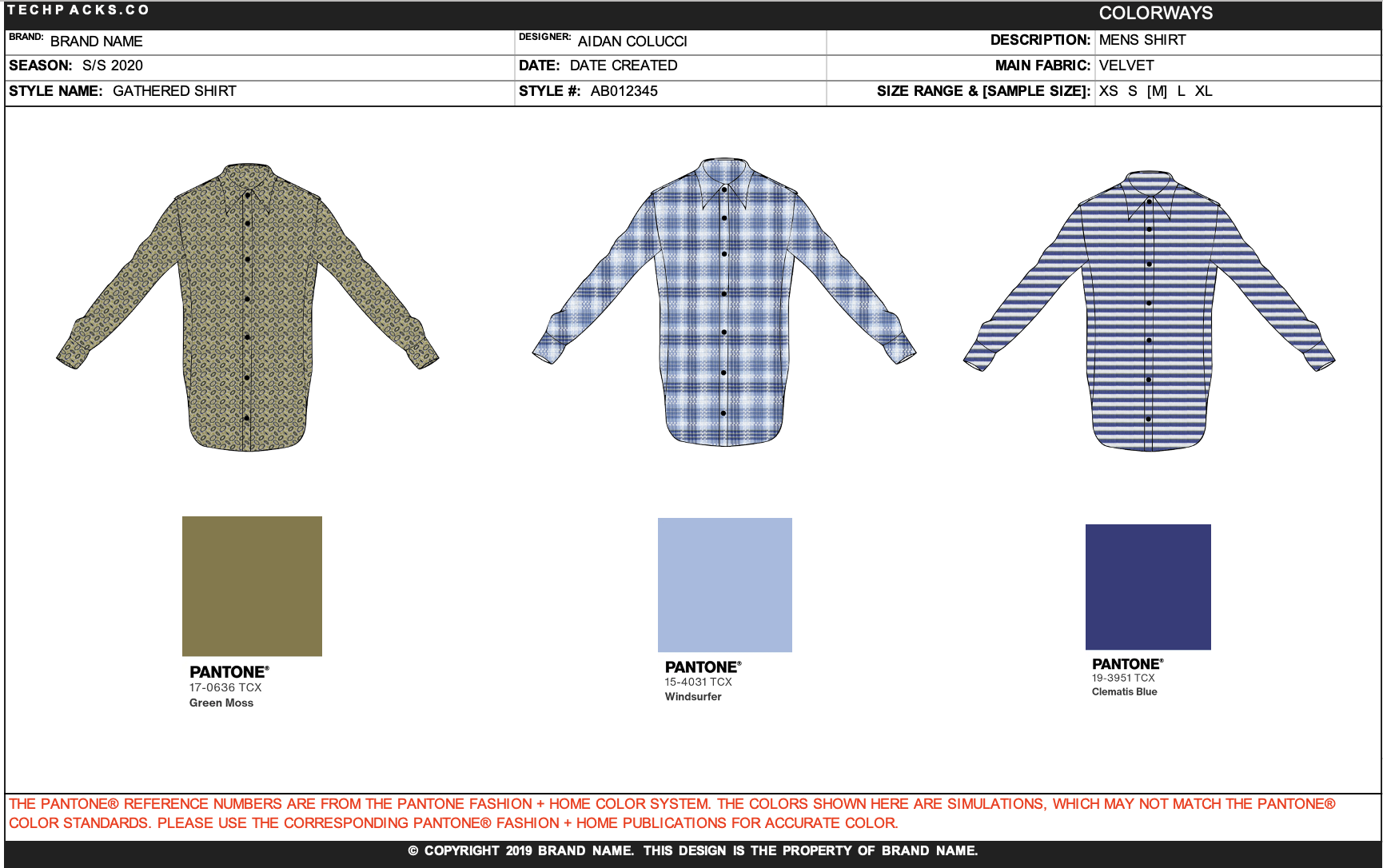

Screenshot 2025-08-10 at 8.56.25 PM.png

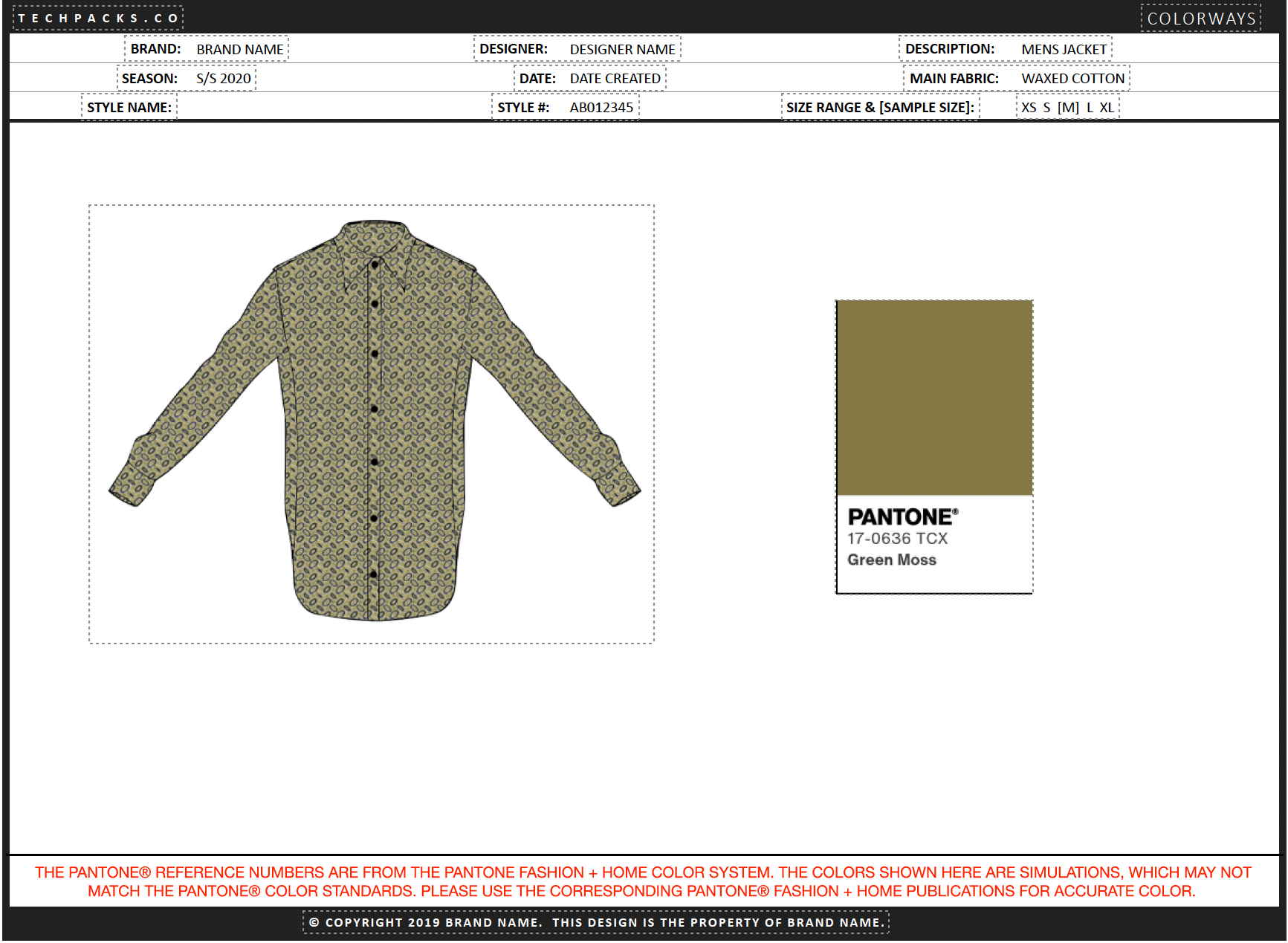

Screenshot 2025-08-10 at 10.35.04 PM.png

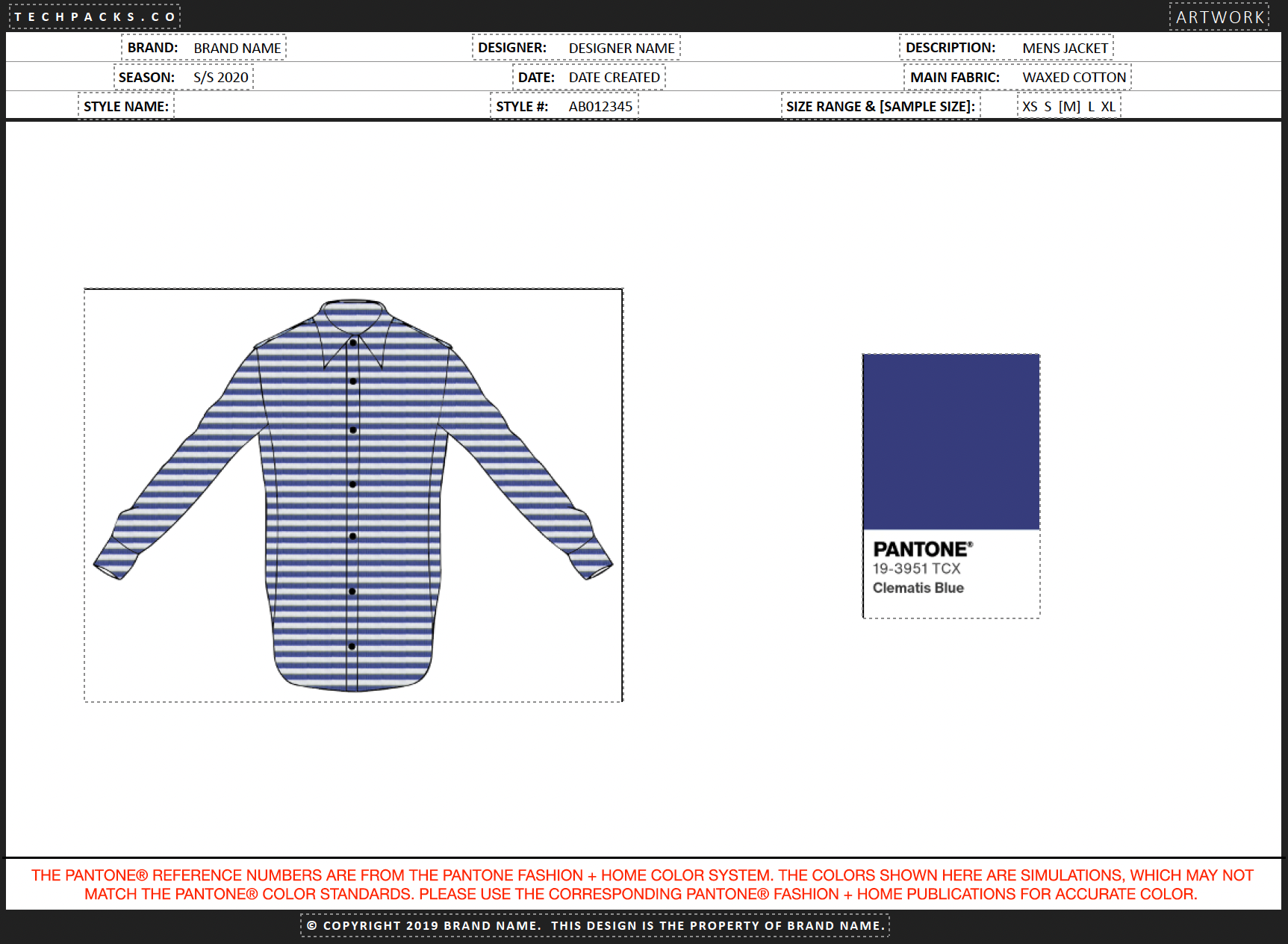

Screenshot 2025-08-10 at 10.36.03 PM 1.png

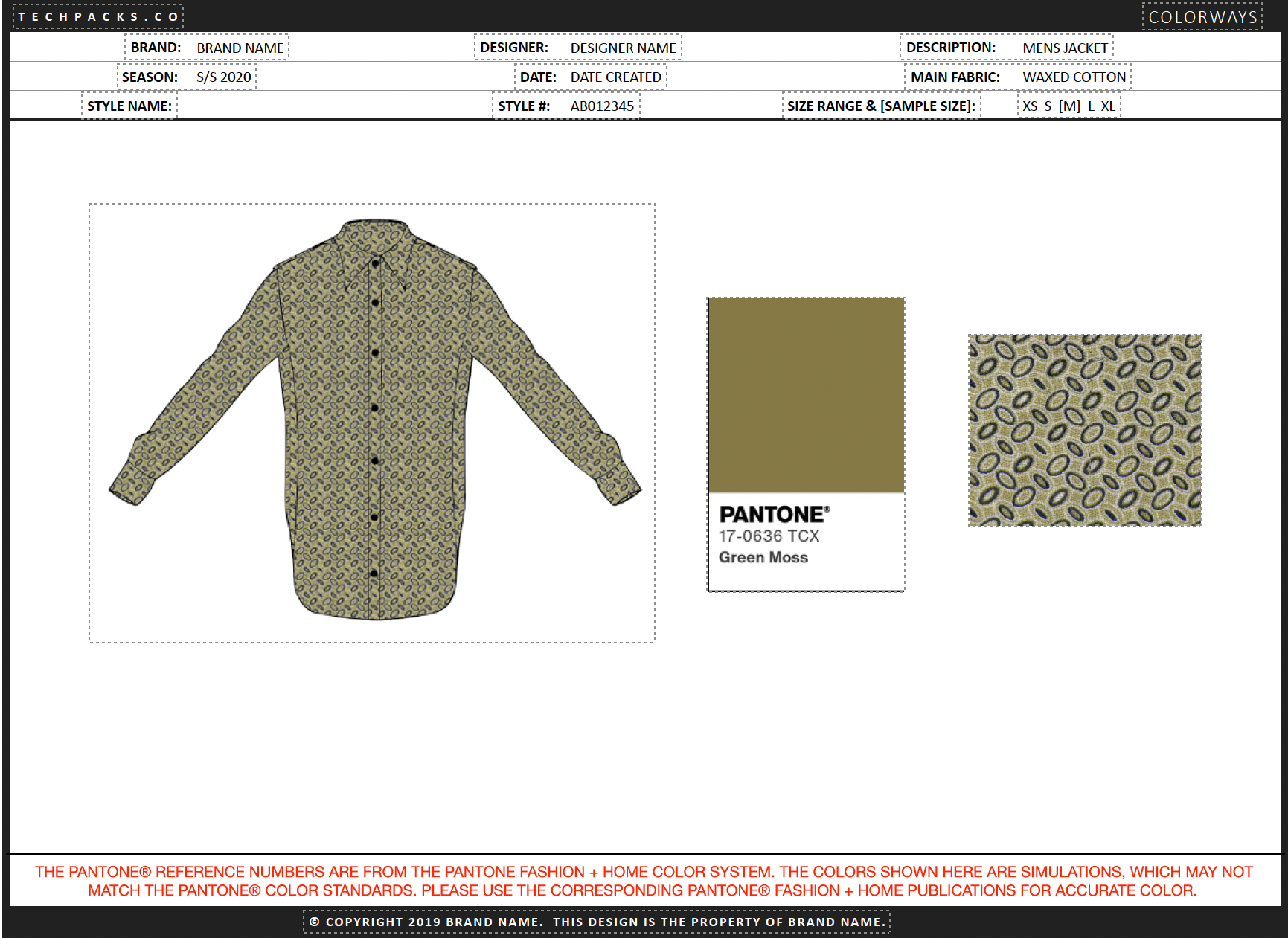

Screenshot 2025-08-11 at 6.50.07 AM.png

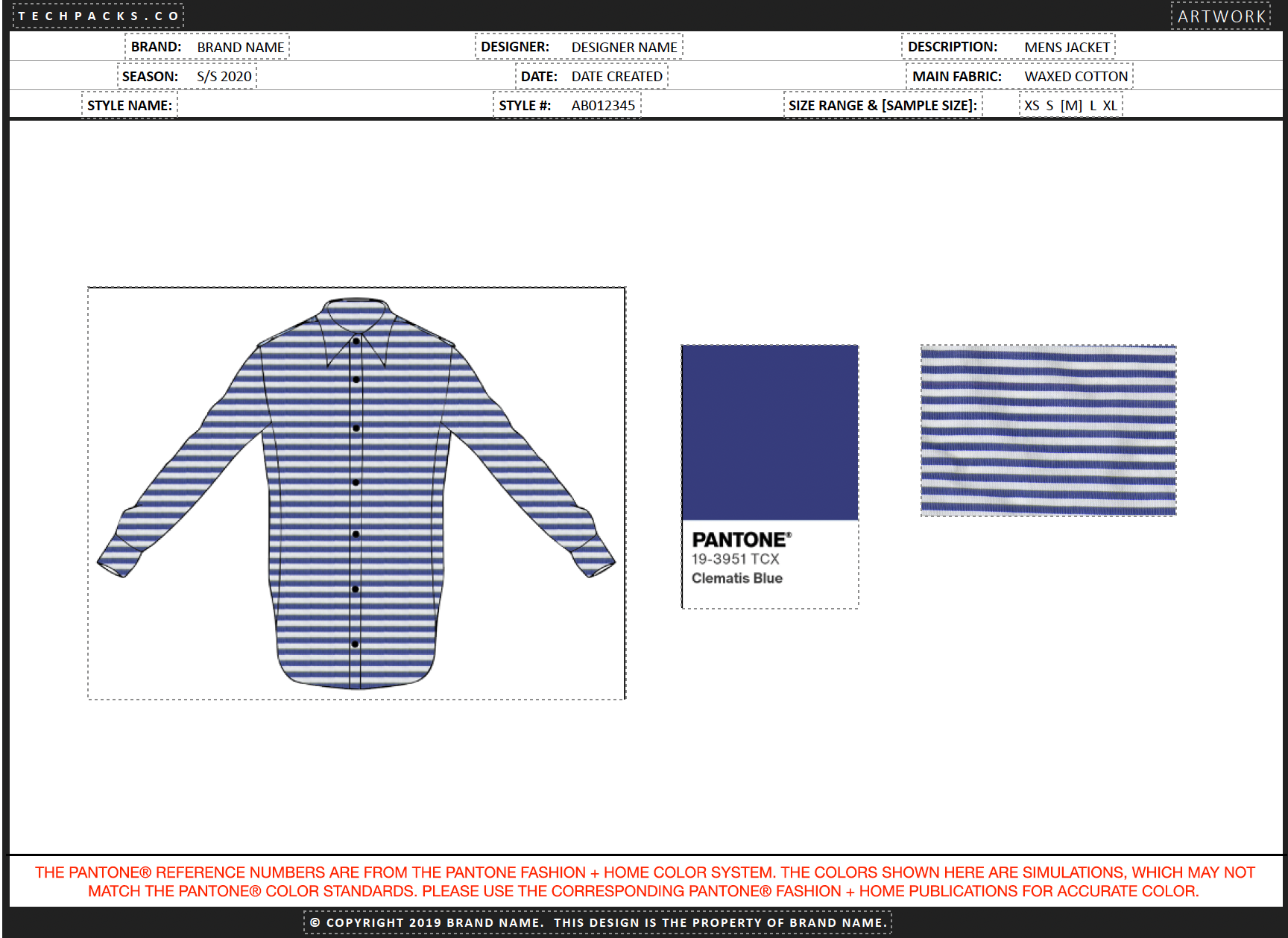

Screenshot 2025-08-11 at 6.49.13 AM.png

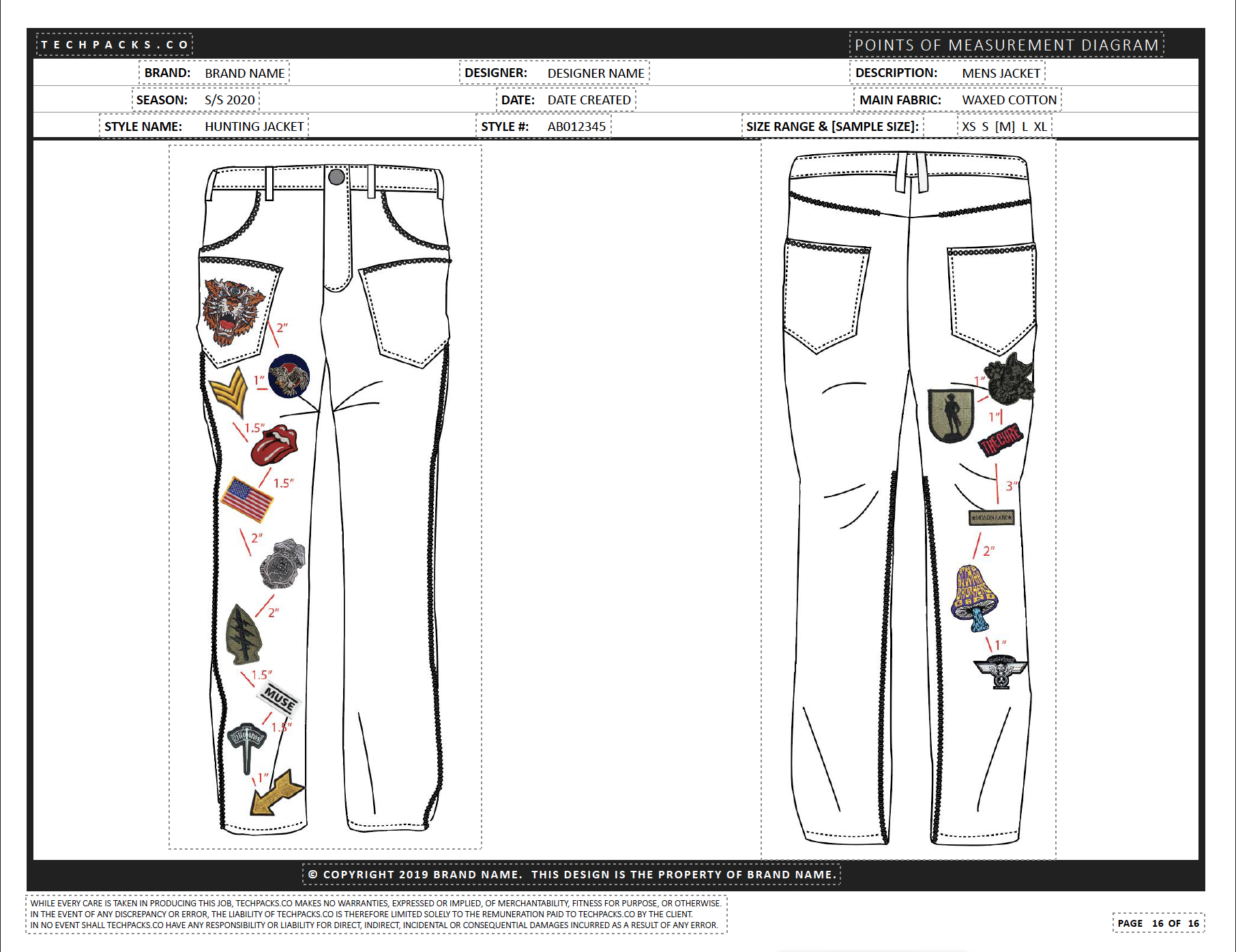

Screenshot 2025-08-11 at 5.50.41 AM.png

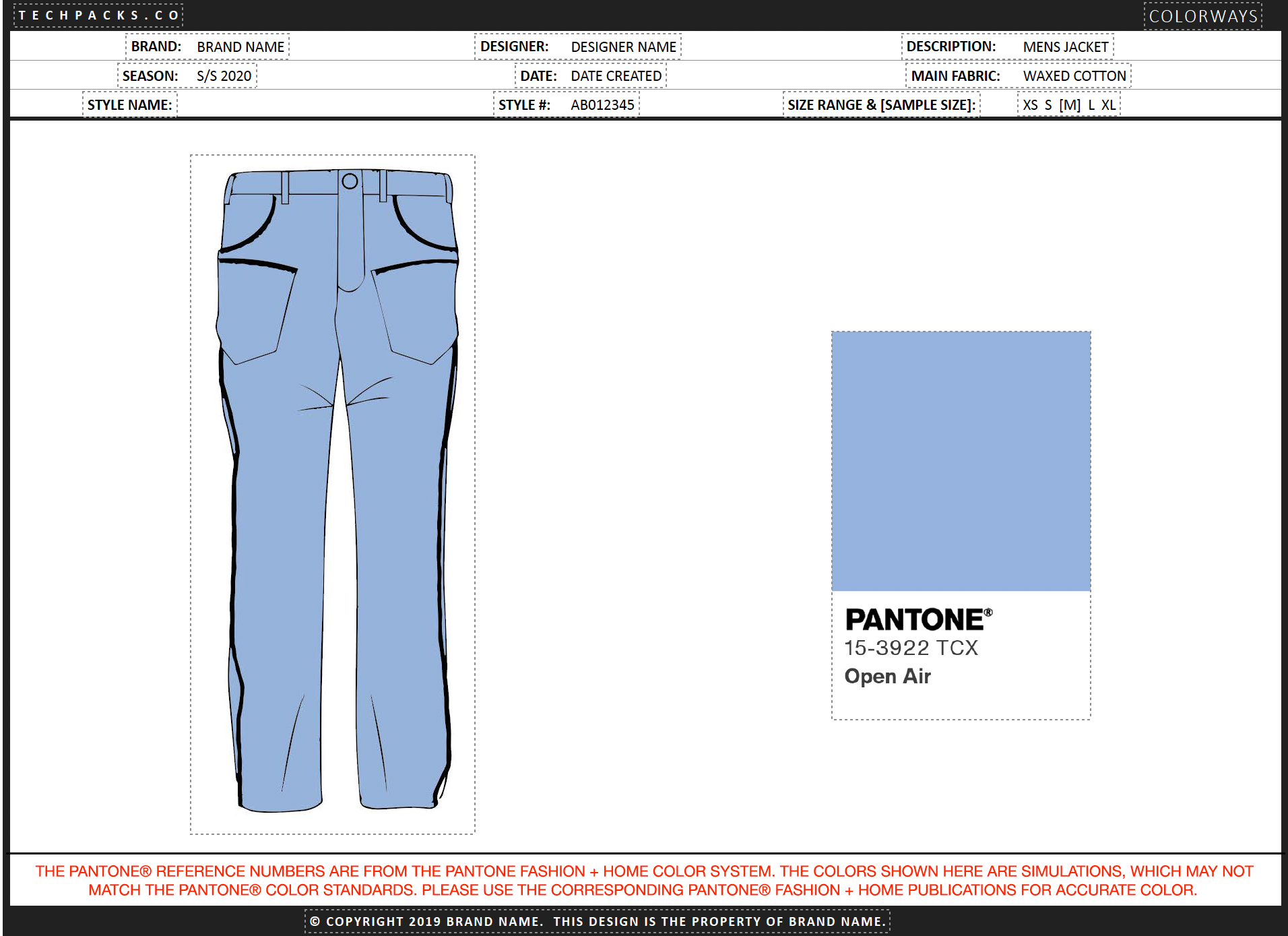

Screenshot 2025-08-11 at 6.41.48 AM.png

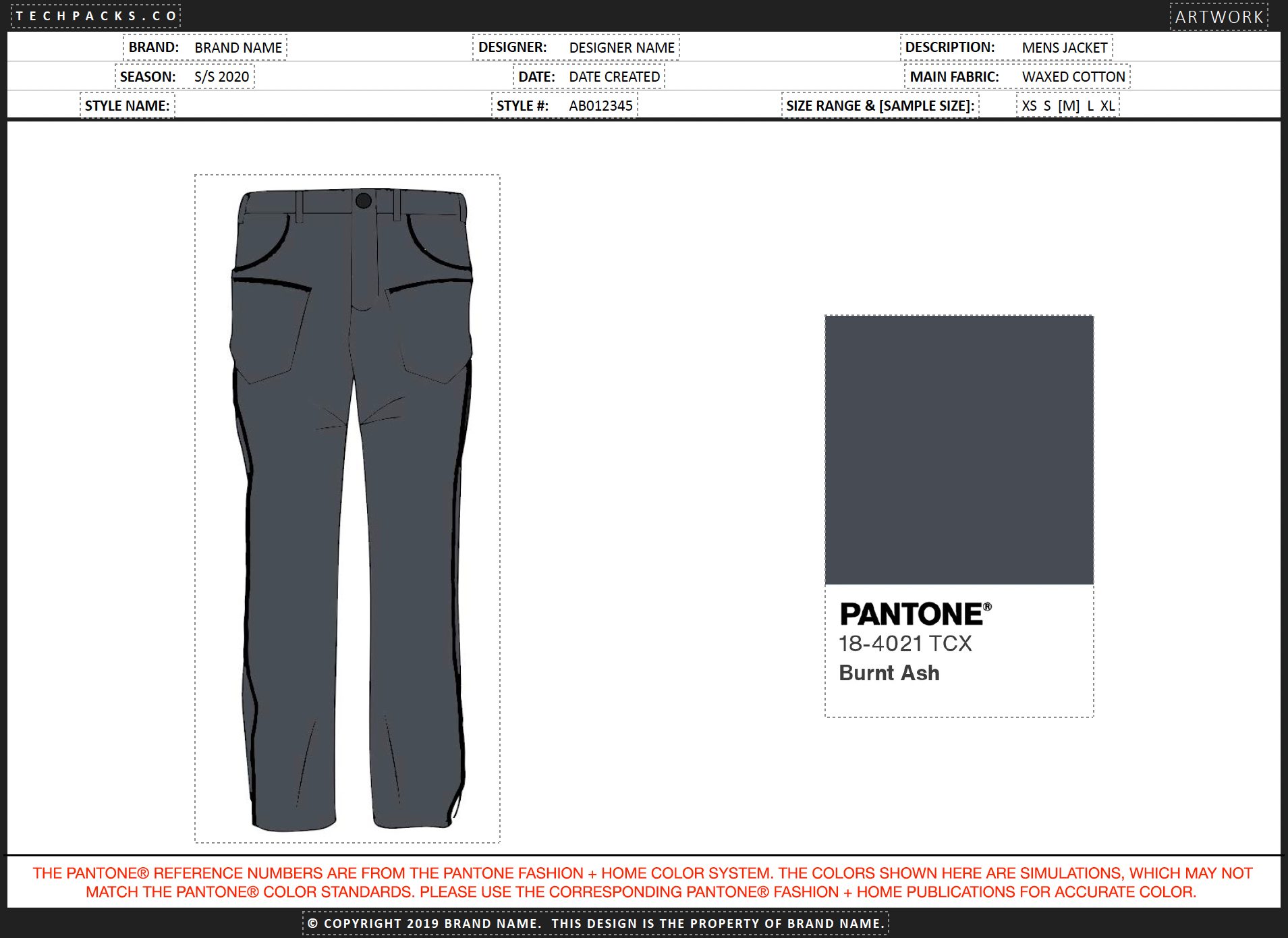

Screenshot 2025-08-11 at 6.42.44 AM.png
